PITOT TUBE PUMPS & COMPONENTS
Roto-Jet Pump Alternatives
Pitot tube pump alternatives supplied through Shenyang Weiming for projects evaluating replacement of existing Roto-Jet equipment. Each proposal requires a review of the original model, process duty, materials and installation dimensions.
PUMP ASSEMBLY
Specify the complete duty.
Discuss the pump, drive, seal arrangement and baseplate requirements together. The photograph shows one equipment arrangement; the supplied configuration follows the agreed quotation and technical documents.
- Process data
- Liquid, flow rate, suction and discharge pressures, temperature
- Materials & sealing
- Subject to liquid composition and operating conditions
- Drive & installation
- Electrical supply, speed control, connection sizes and dimensions
CONSTRUCTION OVERVIEW

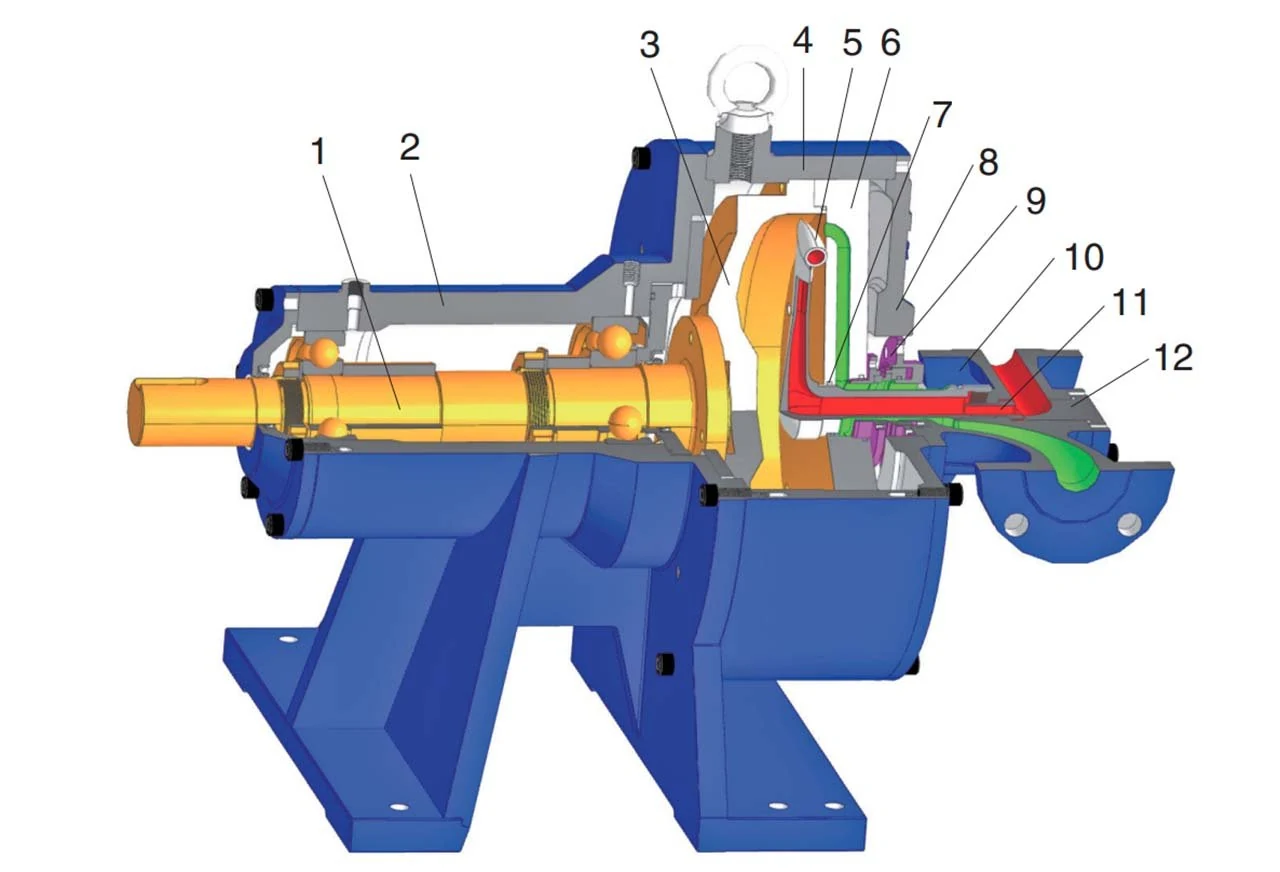

Pump cutaway
Illustrative component layout. Final construction and dimensions depend on the selected model.
- Shaft
- Housing
- Rotor disk
- Pump case
- Pick-up tube
- Rotor cover
- Wear ring
- Casing cover
- Mechanical seal
- Manifold
- Fastener
- Plug
COMPONENT INQUIRIES
Pick-up tubes and pump parts
Send the part drawing, pump identification, material and installation dimensions. For existing equipment, include photographs and available technical documents so that the requested part can be identified.
Any proposed replacement requires a review of fit, materials and operating conditions before supply.
Send your drawing →
Discuss your pump requirements
Send the liquid, flow rate, pressure and operating temperature so we can review your inquiry.
